Semi-trash pumps


P8UTP-TMTNZ
Gasoline Water Pump

Features/Specifications

Outlet Size
2" (50mm)
Inlet Size
2" (50mm)
Speed (rpm)
3600
Displacement Q. max (m3/h)
33
Lift H.max
75' (23m)
Suction
18' (5.5m)
Engine Model
CMXX Series
Engine Type

Single-cylinder, air-cooled,
4 stroke, OHV
Bore x Stroke
62 x 45 mm
Displacement
208 cc
Compression Ratio:
8.5 : 1
Starting System
Recoil and hand-operated
Oil capacity
0.6 L
Fuel Tank Capacity (liter)
2.7 L
Dimensions (LxWxH)
21" x 16" x 19"
Gross Weight
42.0 lbs
Manual

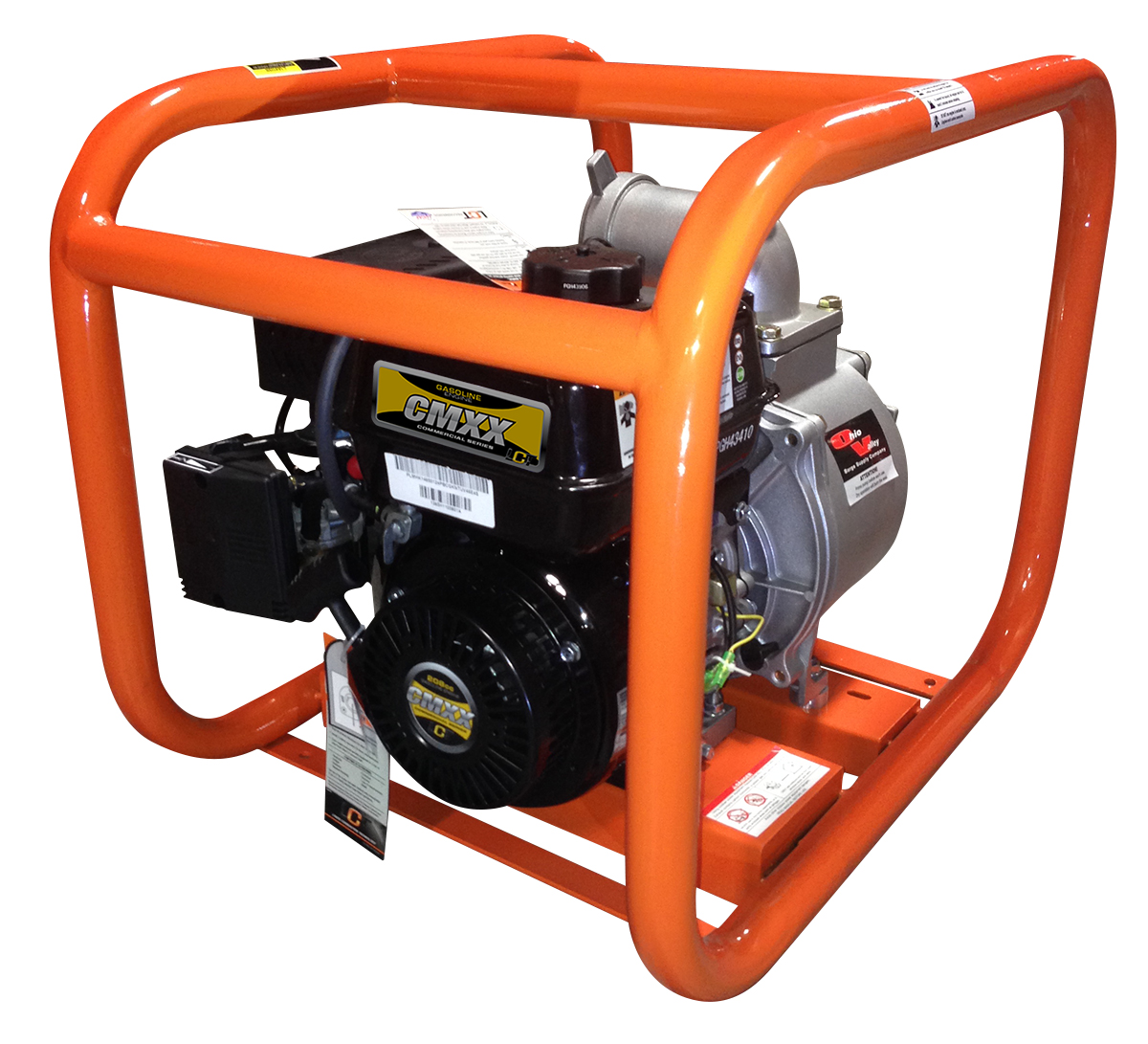

P8UTP-UMZNZ
Gasoline Water Pump

Features/Specifications

Outlet Size
3" (80mm)
Inlet Size
3" (80mm)
Speed (rpm)
3600
Displacement Q. max (m3/h)
65
Lift H.max
98" (30m)
Suction
23" (7m)
Engine Model
CMXX Series
Engine Type

Single-cylinder, air-cooled,
4 stroke, OHV
Bore x Stroke
70 x 54 mm
Displacement
208 cc
Compression Ratio
8.5 : 1
Starting System
Recoil and hand-operated
Oil Capacity
0.6 L
Fuel Tank Capacity (liter)
2.7 L
Dimensions (LxWxH)
24" x 19" x 22"
Dry Weight
58.0 lbs
Manual

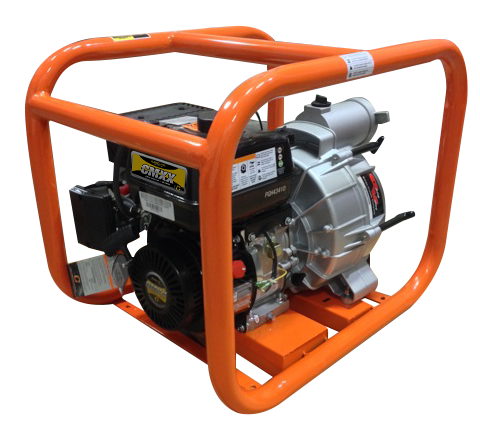

P8UTP-YMZNZ
3" Full Trash Gasoline Pump

Features/Specifications

Pump Type
Full Trash
Solids Handling
1.25"
Impeller
Twin Blade / Cast Iron
Dive System
Direct Threaded PTO
Seal Type
Ceramic
Max Flow
19,200 GPH
Pump Material
Aluminium
Suc. Lift
25 ft.
Outlet Size
3" (80mm)
Inlet Size
3" (80mm)
Total Hd Lift
80 ft.
Outlet Capacity
320 GPM
Engine Model
CMXX Series
Engine Type

Single-cylinder, air-cooled,
4 stroke, OHV
Bore x Stroke
2.75" x 2.12"
Displacement
208 cc
Compression Ratio
8.5 : 1
Starting System
Recoil and hand-operated
Oil Capacity
0.6 L
Fuel Tank Capacity (liter)
2.7 L
Dimensions (LxWxH)
25" x 19" x 20"
Dry Weight
100 lbs
Sales Sheet


P8UTP-YMZNZ
3" Full Trash Gasoline Pump

Features/Specifications

Pump Type
Full Trash
Solids Handling
1.25"
Impeller
Twin Blade / Cast Iron
Dive System
Direct Threaded PTO
Seal Type
Ceramic
Max Flow
19,200 GPH
Pump Material
Aluminium
Suc. Lift
25 ft.
Outlet Size
3" (80mm)
Inlet Size
3" (80mm)
Total Hd Lift
80 ft.
Outlet Capacity
320 GPM
Engine Model
CMXX Series
Engine Type

Single-cylinder, air-cooled,
4 stroke, OHV
Bore x Stroke
2.75" x 2.12"
Displacement
208 cc
Compression Ratio
8.5 : 1
Starting System
Recoil and hand-operated
Oil Capacity
0.6 L
Fuel Tank Capacity (liter)
2.7 L
Dimensions (LxWxH)
25" x 19" x 20"
Dry Weight
100 lbs
Sales Sheet


Pumps

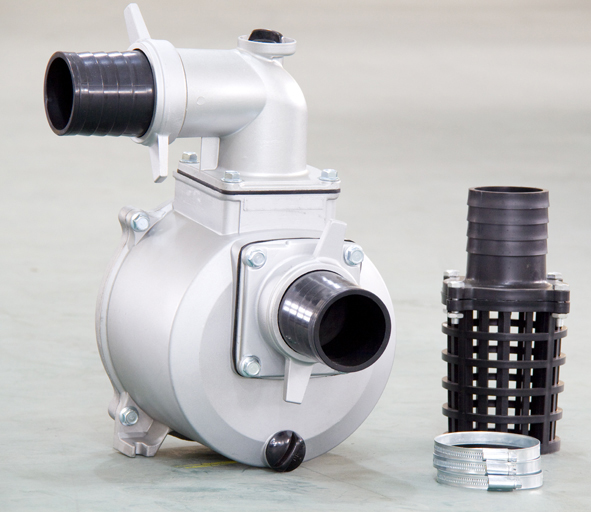

TP300GAP
3" Aluminum Pump

Features/Specifications

Port Size
3" (80mm)
Max Head
28 meters
Suction Lift
8 meters
Max Flow
1000 L/min
Mechanical seal
Carbon-Ceramic
Driving power
4.8 KW
Working Speed
3600 rpm
Weight
9 kg
Length
370mm
Width
275mm
Height
260mm
Body
Aluminium Alloy
Impeller
Cast Iron

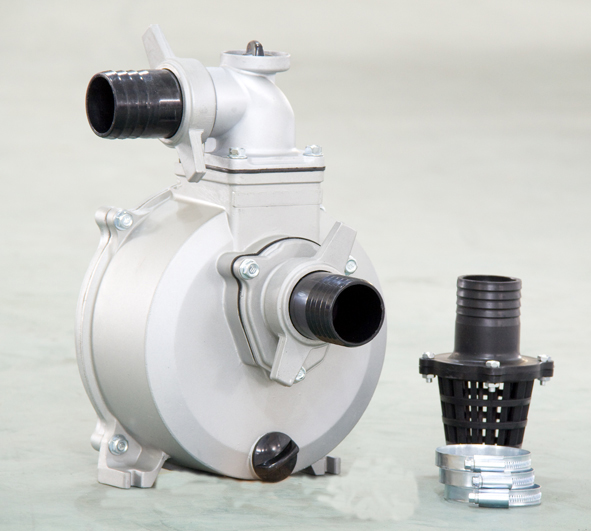

TP200GAP
2" Aluminum Pump

Features/Specifications

Port Size
2" (50mm)
Max Head
35 meters
Suction Lift
8 meters
Max Flow
540 L/min
Mechanical seal
Carbon-Ceramic
Driving power
3.0 KW
Working Speed
3600 rpm
Weight
6 kg
Length
300mm
Width
255mm
Height
205mm
Body
Aluminium Alloy
Impeller
Cast Iron

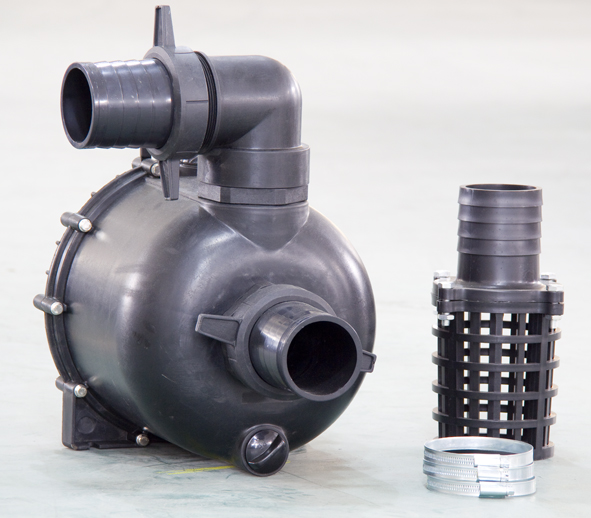

TP300DPP
3" Poly Pump

Features/Specifications

Port Size
3" (80mm)
Max Head
28 meters
Suction Lift
8 meters
Max Flow
1000 L/min
Mechanical seal
Carbon-Ceramic
Driving power
4.8 KW
Working Speed
3600 rpm
Weight
4.7 kg
Length
425mm
Width
295mm
Height
297mm
Body
PA66 plastic

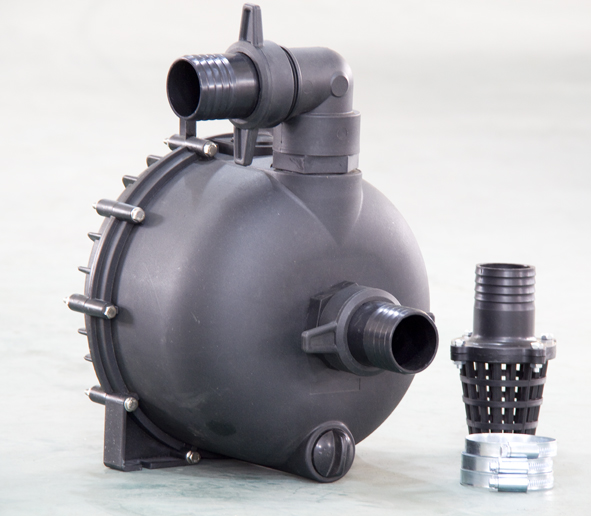

TP200DPP
2" Poly Pump

Features/Specifications

Port Size
2" (50mm)
Max Head
35 meters
Suction Lift
8 meters
Max Flow
540 L/min
Mechanical seal
Carbon-Ceramic
Driving power
4.1 KW
Working Speed
3600 rpm
Weight
3.5 kg
Length
330mm
Width
280mm
Height
222mm
Body
PA66 plastic
